OpenVPN vs WireGuard (Blind Spot)

Published: July 25, 2026

Author: Khalil Imitik

Overview

Most of the time, network problems are loud. Services and applications crash, machines become unreachable, monitoring turns red. But this one is different

The VPN just feels slow, Sometimes… Transfers crawl, remote sessions lag, calls/meetings stutter for a bit then recover. You run a speedtest, bandwidth looks fine. You ping the server, also fine, no packet loss. Tunnel says connected. So you blame the internet or whatever is running on the network that day, and move on. That’s how this issue survives for months in a lot of setups, every quick check passes and nothing looks broken

So, in this article I’ll go through how I chased it down properly, what didn’t fix it, and how it ended with dropping OpenVPN for WireGuard, with test results for both

Test environment

All the numbers, outputs and screenshots below come from a test setup, a remote access tunnel over a long distance link (around 80-85 ms RTT), terminated on OPNsense, OpenVPN over UDP. Nothing exotic, your numbers will differ, But the method is the same

Why The Quick Checks Miss It

Worth understanding why the usual reflexes see nothing here

• Speedtest measures your raw connection to a nearby test server, usually one hosted at your own ISP or in a datacenter close to you. It never goes through the tunnel, so your internet can be perfect while the tunnel is dying
• Ping sends tiny idle packets. This problem only shows up under load, a 64 byte echo goes through a tunnel that falls apart the moment you push real traffic
• Connected just means the control channel works, it says nothing about the data channel under pressure
• It scales with workload, so it looks intermittent. Light browsing feels normal, a big transfer chokes

The only thing that exposes it is an actual throughput test through the tunnel, compared against the same test without it

Measuring It Properly

Three tools, from the client. ping for latency and loss, mtr to see hop by hop where the path degrades, and iperf3 for throughput

What’s iperf3?

If you never used iperf3, it’s a simple client/server bandwidth tester. One end runs iperf3 -s, the other connects to it and pushes as much traffic as the path can carry, then reports the real achievable throughput, retransmits, and TCP window behaviour. The key is that you control both ends, so you can measure one specific path, like a VPN tunnel (from both sides). That’s exactly what makes it the right tool here . For more details, please check the following link

Latency & loss

ping -c 50 TARGET_IP

Path quality, hop by hop

mtr -r -c 100 TARGET_IP

Throughput (iperf3 -s on the other end)

iperf3 -c TARGET_IP -t 30

And every test runs twice

A. Baseline, VPN disconnected, targeting the server’s public IP
B. Tunnel, VPN connected, targeting the tunnel IP

Tunnel IP?

When the VPN connects, both sides get an address on a small private network that only exists inside the tunnel. Target the server’s one (10.8.0.1 if your client got 10.8.0.2, as an example), while still connecting

Use the same commands, only try to change the target. And do the comparison between A and B

Iperf3 hygiene

Two things. First, iperf3 saturates the link by design, so run it off-peak. Second, don’t leave the server side exposed. iperf3 -s listens on TCP 5201 with no auth enabled by default, and it’s a lab tool, not something built to face the internet. So keep it behind the VPN, or open the port temporarily for your own IP only

And here’s what I got 🔎︎

	Without VPN	Through OpenVPN
Latency	~86 ms	~87 ms
Packet loss	0%	~0%
Throughput	~120 Mbps	~15 Mbps

Latency identical. Loss identical. Every “basic check” number healthy. And most of the throughput is just… gone. Nothing is failing, the tunnel is quietly killing TCP under load

The iperf output shows how

Congestion window

TCP doesn’t just blast data at full speed, it only allows a certain amount to be “in flight” before it stops and waits for the other side to acknowledge it. That amount is the congestion window, Cwnd in the output. Every time a packet is lost, TCP assumes congestion and shrinks it (most of the time, at half)

Since it can only send one window per round trip, the window directly caps your speed on a long link

Throughput ≈ Cwnd / RTT

For example, on a LAN with 0.5-1 ms RTT a small window costs you nothing. On an 85 ms link, a 100 KB window means ~9-10 Mbps, no matter how much bandwidth the link has

Through the tunnel (trimmed)

[ ID] Interval           Transfer     Bitrate         Retr  Cwnd
[  5]   1.00-2.00   sec  18.6 MBytes   156 Mbits/sec    0   3.02 MBytes
[  5]  10.00-11.00  sec  14.0 MBytes   117 Mbits/sec  625   1.34 MBytes
[  5]  16.00-17.00  sec  0.00 Bytes   0.00 bits/sec     0   79.0 KBytes

A burst near line speed, then a wall of retransmits, then the window collapsing to under 100 KB and staying there. Which matches the ~15 Mbps I measured. So something inside the tunnel keeps dropping packets under load and TCP keeps backing off. Now the hunt

Watch the Cwnd column

A window stuck at a few hundred KB on a long link means chronic loss somewhere, not a bandwidth limit. It’s the fastest way to tell “the path is broken” from “the path is slow”

What I Tried

One change at a time, same iperf test after each. Otherwise you never know which change did what

MSS Clamping (especially for complex infrastructures)

The classic suspect. The tunnel wraps every packet in its own headers, so there’s less room inside than the usual 1500 MTU. TCP segments that don’t account for that end up fragmented or dropped, which looks exactly like the stalls I was chasing

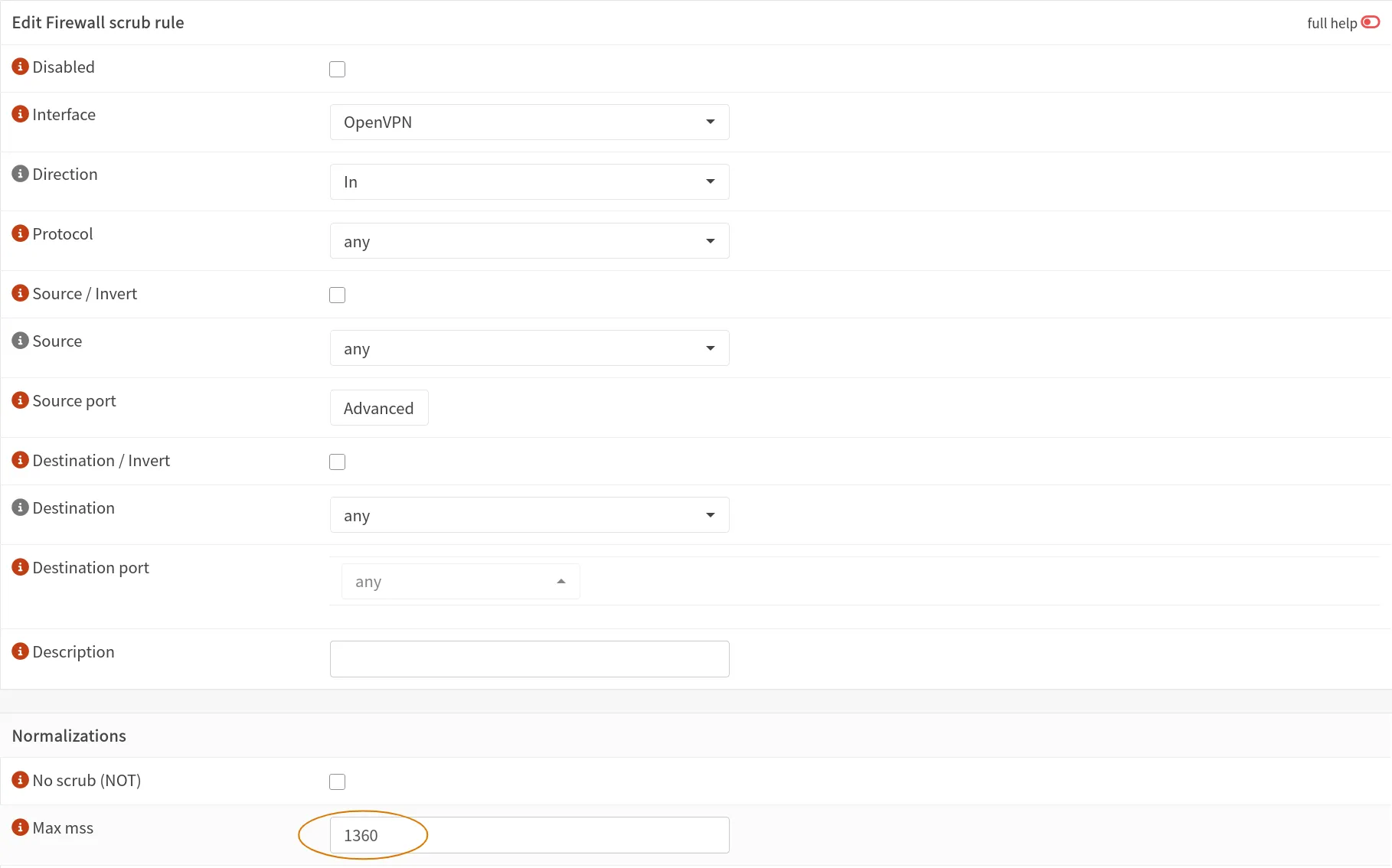

Cheap to rule out, just cap the segment size under Firewall > Settings > Normalization (on the interface: OpenVPN, for both direction In + Out, With a max MSS: 1360)

Why 1360?

The outer headers and OpenVPN’s overhead leave around 1430 inside the tunnel, minus 40 for TCP and IP puts the ceiling near 1390. So 1360 with a bit of margin

Keep in your mind, it’s just a starting point though, IPv6, TCP mode, PPPoE or mobile links all move that number

Result: 15 >> ~19 Mbps

And honestly, this is where most people stop. It got a bit better, must be “network stuff”, case closed. But 19 out of 120 is still bad, and the retransmit counter actually exploded (from a dozen to over a thousand). TCP was finally pushing and something still couldn’t take it. Keep going

The IPS System

If you run an IPS inline, it sits on every packet, and its buffers can silently drop under bursts even when CPU looks fine. Easy to test, just disable it, test or re-run iperf

Nothing changed? So it’s not the IPS, turned it back on! Otherwise, If it had moved, you’d know where to dig, go take a look at the rules and policies you have enabled

Resources

OpenVPN handles a tunnel on a single core, so it can hit its limit while the rest of the box looks idle. Run it on the machine during an iperf

top -aSH -P

In the screenshot above, the openvpn process was sitting around 5%, every core basically idle. So.. not CPU bound

And just to be sure, I threw more at it anyway, extra cores, more memory, swap enabled. Same numbers. It really wasn’t resources

Hardware Offloads

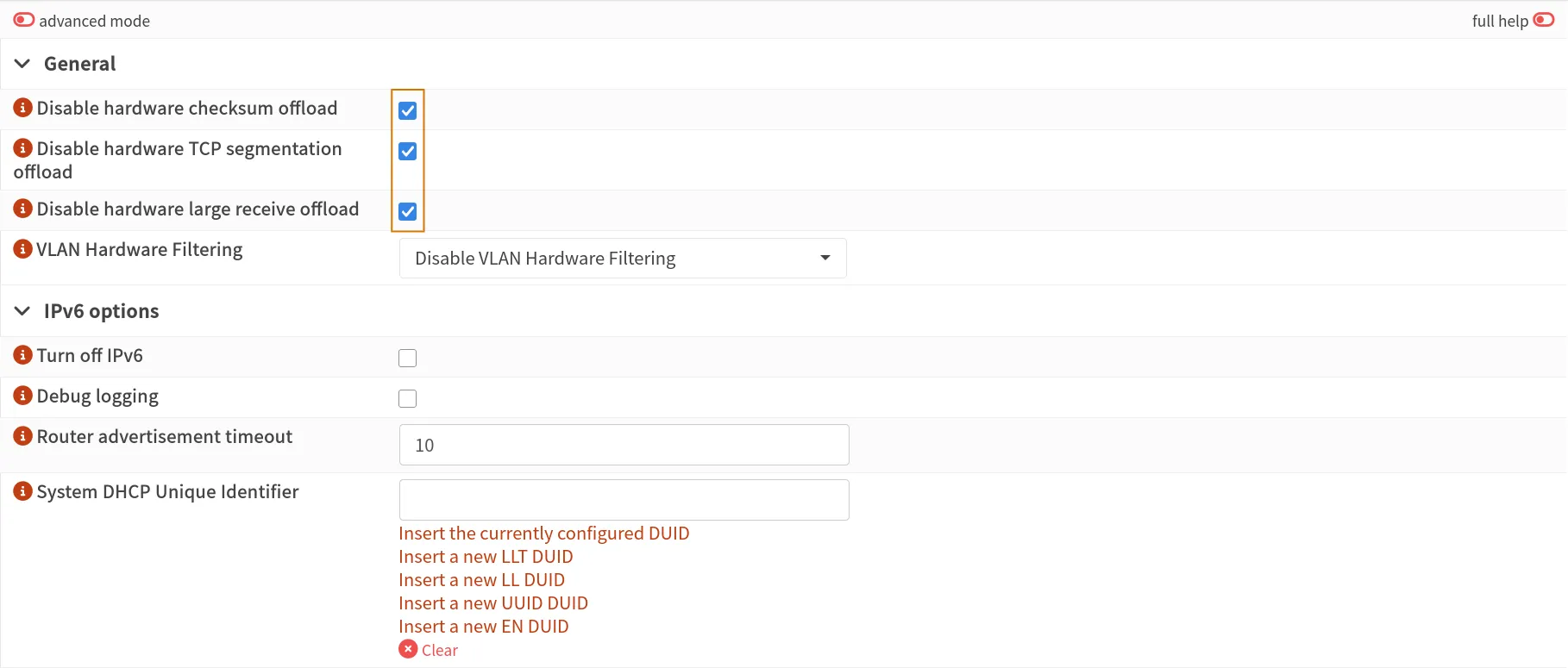

Virtio NICs on BSD based firewalls have a long history of broken checksum/TSO/LRO behaviour, a known source of silent drops. Interfaces > Settings, check the three “Disable hardware…” boxes, save, reboot the VM (they only apply after reboot)

No change either :)

Out of knobs

So. After all, the MTU/MSS is fine, IPS looks innocent, Resources plentiful, Cipher modern, HW offloads disabled, everthing is perfect. The tunnel is configured correctly and still loses most of the link capability. At this point the config is out of suspects, so the protocol itself is next

Trying WireGuard

OPNsense ships WireGuard natively, so putting it up next to the existing OpenVPN takes maybe 20 minutes and you’re not committing to anything

A. VPN > WireGuard > Instances, new instance, generate keypair, pick an unused tunnel subnet and a listen port

B. Peers, add the client’s public key, Allowed IPs = the client’s /32, keepalive 25

C. Firewall rules, allow the UDP port on WAN, allow traffic on the WireGuard interface

D. On the client (including installing wireguard package), wg-quick up, then run the same tests on both tunnels back to back

Want the full setup instead of my summary?

The steps above are the short version, enough to get a tunnel up for testing. For the proper walkthrough

• OPNsense → Road Warrior Setup, including covers instance, peers, network rules and so on
• pfSense → Remote Access VPN, plus Rules / NAT and interface assignment which is where most people get stuck
• Linux → Quickstart Setup, FYI there’s no FW GUI

The four runs, on each tunnel

iperf3 -c TUNNEL_IP -t 120         # upload, single stream
iperf3 -c TUNNEL_IP -t 120 -R      # download, single stream
iperf3 -c TUNNEL_IP -t 60 -P 4     # upload, 4 parallel streams
iperf3 -c TUNNEL_IP -t 60 -P 4 -R  # download, 4 parallel streams

Test both directions

-R reverses the test, so the server sends and you measure download instead of upload. A default run only measures upload, and as you’ll see below, half the story lives in the other direction

-P opens multiple connections at once instead of one, closer to how real traffic actually behaves

Results

Everything in this table goes through the tunnels (VPN up, targeting each tunnel IP). Same link, same firewall, same hour, only the protocol changes. The no VPN baseline to keep in mind as the reference: ~120 Mbps

Test	OpenVPN	WireGuard
Upload, single stream, 120s	~106 Mbps	~97 Mbps
Download, single stream, 120s	~6 Mbps	~92 Mbps
Upload, 4 streams, 60s	~121 Mbps	~128 Mbps
Download, 4 streams, 60s	~18 Mbps	~115 Mbps

Two things here

1. OpenVPN’s failure is one directional. Upload is basically fine, download is dead, every single run. That’s also why single direction testing never catches it, and why it hides behind “emm… internet is slow today” so well

2. WireGuard just works. Around 90-120 Mbps both ways, close to the raw line, on the exact same hardware and link

Why

After days of investigation & testing, the thing I kept coming back to was the retransmits, and a congestion window that never recovered. Packets were getting dropped somewhere inside OpenVPN

Where exactly, I don’t know. OpenVPN just does more per packet, more stages between the tunnel and the wire, and every stage is somewhere a packet can be dropped under load. WireGuard’s path is shorter. That’s ~4k lines of code against OpenVPN’s ~100k+, the same story from a different angle. Could also be how any of that interacts with a virtualised network stack

Either way, I stopped digging once WireGuard did the same job without the problem

Where OpenVPN Still Wins

To be fair, this article is about throughput on a long link. That’s one criteria

Runs over TCP on port 443

Which blends in with HTTPS and gets out of networks with strict egress filtering, or places where VPN traffic is actively blocked. WireGuard is UDP only, block UDP and it’s dead unless you wrap it in something else

Real user authentication

Usernames, certificates, MFA, revoke one without touching the others. On the other hand, WireGuard only knows peer keys

It’s not that OpenVPN is bad, it’s just the wrong tool when you want throughput over a high latency link

And hopefully it helps ✌︎㋡
